Mini Plc

  • 8 - axis high speed pulse input and output

  • The basic execution speed is 0.01us ~ 0.03us

  • 8 external X interrupts supported (both rising and falling)

  • (High baud rate)921600bps

  • 100us high - speed timing interrupt

  • Maximum 100 high - speed counting interrupts

  • Supports up to 112 IOs

  • Relay Base & Transistor Low Side Base modules

  • Stacking using FRC cable up to maximum 6 Expansion Modules

  • Isolated Digital Inputs with sourcing & sinking capability

  • Isolated Digital Transistorized Outputs (Low Side and High side driver)

  • High Speed Inputs - Single / Quadrature (1x/2x/4x)

  • High Speed Outputs (PTO / PWM / S-Profile)

  • CE and RoHS complied

  • Analog Voltage/Current Inputs and Outputs of 0-10 V / 4-20 mA

  • PC Software for programming, online & offline simulation

  • Standard RS232/RS485 port with RJ11 for HMI/SCADA Interface

  • Modbus RTU support

  • 128 Weekly, Monthly & Yearly Time Switches each

  • Multiple Timers, Counters including retentive counters, Hour meters & many more function blocks

Lx5v Series Relay

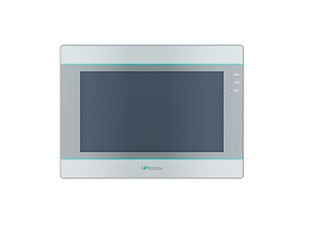

HMI

  • 32G SD card supported

  • 64G U disk storage supported

  • Ethernet supported, CAN bus (optional)

  • RS232 | RS485 | RS422 supported

  • LUA SCRIPT supported

  • Equipment management

  • Alarm push

  • Remote operation and maintenance

  • Cloud SCADA

HMI
